A Deep Dive into Instrument Approach Procedures, OpSpec C052, and the Nuances of Performance-Based Navigation
In the intricate world of modern aviation, instrument approach procedures (IAPs) are critical for ensuring safe and efficient operations, especially in challenging weather conditions. For air carriers and operators conducting flights under 14 CFR Part 135, Operations Specification C052 (OpSpec C052), formally titled “Straight-in Non-Precision, APV, and Category I Precision Approach and Landing Minima—All Airports,” serves as a foundational authorization. This document meticulously outlines the specific types of IAPs a certificate holder is permitted to conduct under Instrument Flight Rules (IFR), implicitly prohibiting any approach types not explicitly listed. OpSpec C052 is far more than an administrative formality; it represents the Federal Aviation Administration’s (FAA) confirmation that an operator possesses the necessary aircraft equipment, established operational procedures, and FAA-approved flight crew training programs to safely execute these advanced procedures.
This article delves into the intricacies of Approach with Vertical Guidance (APV) approaches, explores the distinctions between various RNAV (Area Navigation) and RNP (Required Navigation Performance) procedures, including RNP AR (Authorization Required), and deciphers the sometimes-confusing international nomenclature.
Defining APV: A New Generation of Instrument Approaches
An Approach with Vertical Guidance (APV) is an instrument approach procedure that utilizes a navigation system to provide both lateral (course) and vertical (glidepath) deviation information to the flight crew. However, APV approaches are not mandated to meet the stringent international standards set for traditional precision approach and landing operations, such as those detailed in ICAO Annex 10. This distinction is reiterated in the FAA’s Aeronautical Information Manual section 5-4-5.
The APV classification was introduced by the FAA and ICAO to effectively integrate newer navigation technologies, primarily Global Navigation Satellite System (GNSS)-based procedures, into the operational framework. These technologies enabled the design of approaches offering vertical guidance capabilities that, while highly accurate and safe, might not satisfy all the specific certification and performance benchmarks of legacy precision approach systems like ILS (Instrument Landing System) Category II or III.

RNAV (GPS/GNSS) Approaches Authorized Under the APV Banner
Within OpSpec C052, the APV column specifically authorizes Part 135 operators to conduct RNAV (GPS) or RNAV (GNSS) approaches designed with an integral vertical guidance component. The primary types of approaches falling under this authorization include:
- LPV (Localizer Performance with Vertical Guidance): Representing the highest performance level within the APV category, LPV approaches leverage Satellite-Based Augmentation Systems (SBAS), such as the Wide Area Augmentation System (WAAS) in the United States or the European Geostationary Navigation Overlay Service (EGNOS) in Europe. SBAS provides highly accurate and reliable lateral and vertical guidance. A key characteristic of LPV approaches is their angular guidance, which, much like an ILS, becomes increasingly sensitive as the aircraft nears the runway threshold. This similarity allows pilots proficient in ILS procedures to adapt their skills more readily. LPV minima can often be as low as a 200-foot Decision Altitude (DA) and 1/2 statute mile visibility, comparable to ILS Category I minimums.
- LNAV/VNAV (Lateral Navigation/Vertical Navigation): These approaches also provide both lateral and approved vertical guidance. The vertical navigation (VNAV) component can be derived from two main sources: aircraft Barometric VNAV (Baro-VNAV) systems or an SBAS like WAAS. When Baro-VNAV is utilized, the vertical path is computed based on barometric altitude, making it susceptible to errors from non-standard temperatures and reliant on precise altimeter settings. Consequently, LNAV/VNAV minima are typically higher than LPV minima, often in the 350 to 400-foot DA range, to account for these potential inaccuracies or for obstacle clearance, even when WAAS generates the LNAV/VNAV path.
- RNAV (GPS) PRM Approaches: As indicated by FAA Notice N 8900.216, RNAV (GPS) Precision Runway Monitor (PRM) approaches can also be authorized under the APV column of OpSpec C052. PRM approaches are specialized procedures designed to facilitate simultaneous independent approaches to closely spaced parallel runways, and their RNAV (GPS) versions incorporate a vertically guided path.
(NOTE: PRM Approaches must be specifically listed in the op spec to be authorized for use)
C052
The explicit inclusion of these approach types in the APV column of C052 signifies an operator’s authorization to use the designed vertical guidance element of these procedures. This authorization has direct implications for aircraft equipage, pilot training curricula, and the development of standard operating procedures.
Interpreting OpSpec C052 for Flight Operations
For Part 135 pilots, the APV column in their company’s OpSpec C052 is a critical reference during flight planning and a direct authorization for execution. Pilots must:
- Verify Authorization: Before planning or conducting an RNAV (GPS) or RNAV (GNSS) approach with vertical guidance (e.g., to LPV or LNAV/VNAV minima), confirm that this specific capability is authorized under Column 2 (APV) of their currently effective OpSpec C052.
- Select Appropriate Minima: When an RNAV (GPS) approach chart presents multiple lines of minima (e.g., LPV, LNAV/VNAV, LNAV), pilots must select the line of minima (LPV or LNAV/VNAV to a DA) that aligns with their aircraft’s certified equipment capability, the current level of GNSS service (e.g., WAAS availability), and the specific authorizations in OpSpec C052.
- Understand Implied Vertical Guidance: Recognize that an APV column authorization inherently means the approach will be flown using an FAA-approved vertical guidance system, culminating in a Decision Altitude (DA).
Pre-Flight Essentials for APV Operations

Authorization to conduct APV approaches under OpSpec C052 is contingent upon several crucial pre-flight verifications:
- Aircraft and Avionics Eligibility: The aircraft must be equipped with avionics certified for the specific type of APV approach. For LPV approaches, this typically necessitates an FAA-approved WAAS receiver (e.g., meeting TSO-C145a/C146a standards). For LNAV/VNAV approaches, the aircraft must possess either an approved Baro-VNAV system or an SBAS (WAAS) capability for the vertical path. The aircraft’s eligibility must be documented in the FAA-approved Airplane Flight Manual (AFM), Rotorcraft Flight Manual (RFM), or their supplements.
- Navigation Database Currency: The aircraft’s navigation database must be current and contain the specific APV approach procedure. These procedures must be loaded from this certified database and cannot be manually constructed by the pilot. The integrity of this data is paramount for GNSS-based navigation safety.
- RAIM/WAAS Availability Prediction: A pre-flight prediction of signal availability is essential for any GPS-based approach. For LNAV/VNAV approaches using a non-WAAS GPS receiver with Baro-VNAV, a Receiver Autonomous Integrity Monitoring (RAIM) prediction for the estimated time of arrival must indicate availability. For LPV or WAAS-based LNAV/VNAV approaches, WAAS availability must be predicted. Pilots must also consult Notices to Air Missions (NOTAMs) for any outages or limitations affecting GPS, WAAS, or specific procedures.
These pre-flight checks are integral to ensuring the aircraft’s capability, data accuracy, and navigation service availability for safe APV operations.
The Core Distinction: RNAV vs. RNP
Understanding the difference between RNAV and RNP is fundamental to grasping modern navigation capabilities:
- RNAV (Area Navigation): Allows aircraft to fly on any desired flight path within the coverage of station-referenced navigation aids, within the limits of self-contained aid capabilities, or a combination thereof. Standard RNAV systems can calculate their position but may not possess the same level of continuous integrity monitoring and crew alerting if navigation performance accuracy is not met.
- RNP (Required Navigation Performance): Is a statement of the navigation performance accuracy necessary for operation within a defined airspace. Crucially, RNP systems include On-Board Performance Monitoring and Alerting (OBPMA). This means the system actively monitors its achieved navigation performance and alerts the crew if the requirements for a specific procedure or airspace are not being met.
In essence, all RNP systems are RNAV systems, but not all RNAV systems meet the requirements to be classified as RNP.
Deciphering Approach Titles: “RNAV (GPS),” “RNAV (GNSS),” and “RNP”
The naming conventions for approach procedures can sometimes lead to confusion, particularly when comparing US and European practices.

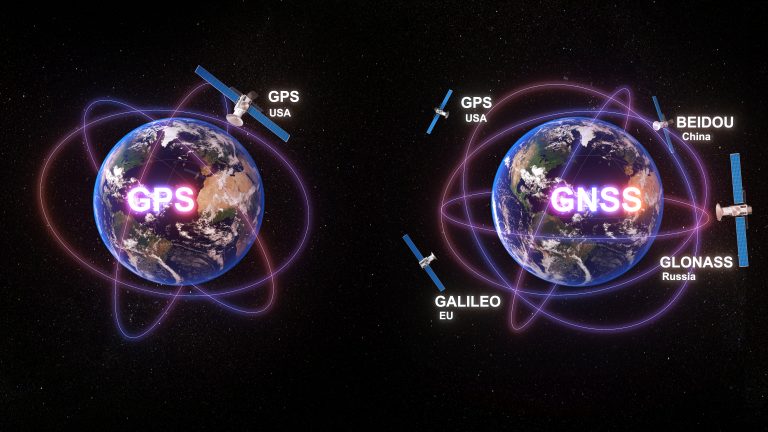

- RNAV (GPS) vs. RNAV (GNSS): In the United States, satellite-based approaches are commonly titled “RNAV (GPS).” The term “GNSS” (Global Navigation Satellite System) is a broader term encompassing various satellite constellations (GPS, GLONASS, Galileo, BeiDou). While RNAV (GPS) specifically denotes reliance on the GPS constellation (often augmented by WAAS), RNAV (GNSS) is more frequently seen in ICAO and international contexts, indicating that the procedure can be flown using any approved GNSS sensor. For practical purposes within the US system relying on GPS and WAAS, they often lead to similar operational capabilities.
- The “RNP” Titling in Europe: In Europe, and increasingly globally following ICAO recommendations, many approach procedures formerly titled “RNAV (GNSS)” are now designated “RNP RWY XX.” This aligns with ICAO’s Performance-Based Navigation (PBN) concept, which uses “RNP” as the primary designator for satellite-based approaches, typically referring to RNP APCH (RNP Approach) procedures. It is critical to understand that these standard “RNP RWY XX” procedures in Europe are not automatically RNP AR (Authorization Required) approaches. They are generally the European equivalent of what the FAA would title an “RNAV (GPS)” approach. These RNP APCH procedures have defined RNP values (e.g., RNP 0.3 for the final approach segment for LPV or LNAV minima) but do not typically demand the special aircrew and aircraft authorization that RNP AR procedures necessitate.
- The US Approach to Titling: In the United States, the FAA has largely maintained the following distinctions:
- RNAV (GPS) RWY XX: This is the common title for most satellite-based area navigation approaches, which may offer LNAV, LNAV/VNAV, or LPV lines of minima.
- RNAV (RNP) RWY XX: This title in the US is specifically reserved for RNP AR (Authorization Required) procedures. The chart will also explicitly state “Authorization Required” or “AR.”
RNP AR Approaches: The Realm of Special Authorization
Both the FAA and EASA (European Union Aviation Safety Agency), along with other authorities, have a distinct category for RNP AR approaches.
- Characteristics: These procedures often involve navigating through challenging terrain or complex airspace. They may include Radius-to-Fix (RF) legs, which are curved paths, even in the final segment. RNP AR approaches can also have more stringent RNP values (e.g., RNP 0.15 or RNP 0.10) than standard RNP APCH procedures.
- Specific Authorization: Flying RNP AR procedures demands specific operational approval for the aircraft, flight crew training, and the operator.
- In the US, for Part 135 operators, this authorization is OpSpec C384 (“Required Navigation Performance Procedures with Authorization Required”). An older specification, OpSpec C358 for RNP SAAAR (Special Aircraft and Aircrew Authorization Required), has largely been superseded and incorporated into the RNP AR framework under C384.
- EASA and other regulatory bodies have equivalent stringent approval processes for operators to conduct RNP AR approaches.
Understanding Navigation Accuracy Values
The phrase “not RNP in the aspect of less than RNAV 1 approaches” touches upon the specific navigation accuracy values associated with different procedures and flight segments:
- RNAV 1: This is a navigation specification typically used for terminal operations (SIDs, STARs, and the initial/intermediate segments of an approach). It requires the aircraft to maintain a track accuracy of +/- 1 Nautical Mile (NM) for 95% of the flight time.
- RNP APCH: Procedures like the European “RNP RWY XX” (non-AR) or the US “RNAV (GPS) RWY XX” typically require RNP 0.3 for the final approach segment (e.g., when flying to LNAV, LNAV/VNAV, or LPV minima). In this final segment, the accuracy requirement of 0.3 NM is indeed “less than” (meaning more stringent or a smaller tolerance) RNAV 1.
- RNP AR: These approaches can demand even more stringent RNP values, such as RNP 0.1, providing a very high level of navigation accuracy.
The key takeaway is that while a European “RNP RWY XX” (non-AR) procedure uses the RNP designator and has specific RNP values (like RNP 0.3), it does not carry the same special operational approval requirements as an RNP AR procedure, which is explicitly designated as requiring authorization.
Summary for Corporate Jet Pilots: Navigating the Nomenclature
- Europe “RNP RWY XX”: Often equivalent to a US “RNAV (GPS) RWY XX.” These are standard PBN approaches (RNP APCH) and generally do not require RNP AR authorization unless the chart explicitly states “(AR)” or “Authorization Required.”
- US “RNAV (GPS) RWY XX”: Standard PBN approaches.
- US “RNAV (RNP) RWY XX” & Europe “RNP RWY XX (AR)”: These are RNP AR procedures. They always require specific authorization (e.g., FAA OpSpec C384 for US Part 135, or equivalent EASA approval). The chart will clearly indicate “Authorization Required.”
- The “RNP” in a European approach title (for a standard procedure) signifies that it is designed with RNP specifications and requires an aircraft equipped and certified for RNP operations, including the necessary OBPMA for the RNP value of each procedure segment.
The differences in titling philosophies can be a source of confusion. Pilots must always meticulously verify the specific requirements on the approach chart itself and ensure they possess the necessary operational approvals and aircraft capabilities for any procedure, especially those marked “AR” or “Authorization Required,” regardless of the precise title. A thorough understanding of Op Specs, aircraft limitations, and PBN concepts is paramount for safe and compliant flight operations in the modern airspace system.
